Surge Suppression EMI Filter
Specially designs for the suppression surge disturbance, Can effectively suppress each kind of surge impact
Product Description
This kind of Surge Suppression EMI Filter is mainly composed of premium high voltage capacitors, high voltage reactors, low voltage capacitors, low voltage reactors and other components. It has the properties of small volume, high power, high temperature resistance, strong overload capability, weather resistance, high precision, high stability and strong frame structure, which is beneficial to mechanical protection. In addition, the Surge Suppression EMI Filter can be used to prevent transient pulse interference and other disturbances that are continuous or discontinuous. It is reliable and widely used in various industrial applications. It can be customized in accordance with the requests of customers, it is conventional and easy to install. The Surge Suppression EMI Filter is specially designed for the suppression surge disturbance, it can effectively suppress each kind of surge impact.
|
Conditions |
AC DC 3 phase |
|
Rated Voltage |
250VAC 80VDC 440VAC |
|
(8/20 μ s. 10 times) |
5-40KA |
|
Insulation Resistance |
>50MΩ@500VDC |
|
Temperature Rise |
<30℃ |
|
Climatic Category |
25/085/21 |
List Of General Products
|
Part No. |
Rated Current |
Leakage Current |

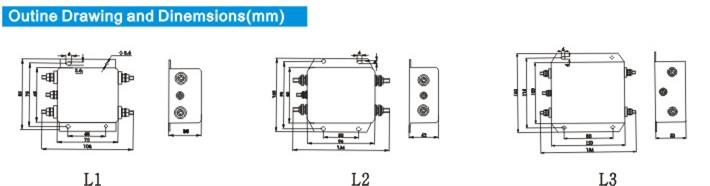

Dimension |
Terminal |
Remarks |
|
|
Input |
Outpot |
|||||
|
DL1-6-10A |
6-10A |
<1.0mA |
L1 |
|
|
Special resistances available |
|
DL2-10-30A |
10-30A |
<1.0mA |
L2 |
|
|
|
|
DL3-30-50A |
30-50A |
<1.0mA |
L3 |
|
|
|
