Rkt-3362 1/4" (6 mm) Square Trimming Potentiometer
Terminal Resitance: ≤3%Or 3Ω
Contact Resistance Vartion: ≤3%Or 3Ω
Insulation Resistance: R1≥1GΩ
The company specializes in the operation and service of high-quality 3-Phase 4-Line EMI/RFI Filters, Three-stage EMI Filters, Trimming Potentiometers - Multiturn, and is good at dealing with some difficult problems in practice. We will continue to do our best effort to service and satisfy you! Years of unremitting efforts have made us enjoy a high reputation and attract attention in the industry. Our products are not only sold throughout the country, but also exported to dozens of countries overseas. We expect to provide products and services to more users in global aftermarket markets; we launched our global branding strategy by providing our excellent products all over the world by virtue of our well reputed partners letting global users keep pace with technology innovation and achievements with us. Our confidence in product quality comes from the continuous technological innovation system, strict quality inspection procedures and proactive customer service.
Product Description

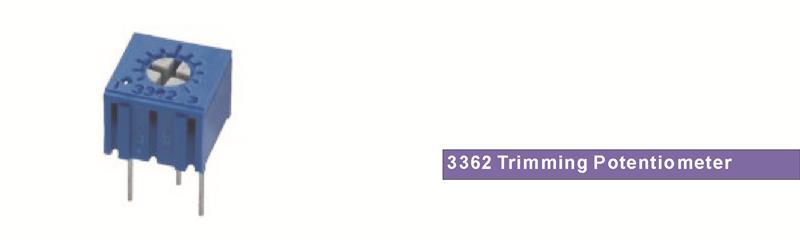

This kind of 3362 Trimming Potentiometer is mainly used in circuits that do not require constant adjustment, such as voltage adjustment potentiometer in color TV switching power supplies. It has three pins and usually has an adjustment hole. Insert a screwdriver into the adjustment hole and rotate it to adjust the resistance. Its resistor body has two fixed ends, by manually adjusting the rotating shaft or the slider, changing the position of the moving contact on the resistor body changes the resistance value between the moving contact and any fixed end, thereby changing the voltage and electricity. The 3362 Trimming Potentiometer is widely used in optical detectors, liquid crystal displays, mobile phones, PHS, pagers, digital video cameras, digital cameras, portable audio equipment and so on.
Specification
| Range Of Nominal Resistance | 10Ω-2MΩ |
Resistance Tolerance | ±10% |
Terminal Resitance | ≤3%Or 3Ω |
Contact Resistance Vartion | ≤3%Or 3Ω |
Insulation Resistance | R1≥1GΩ |
Withstand Voltage | 101.2kpa 500v 8 5kpa 350v |
Effective Electrical Travel | ≥Total mechanical travel70% |
| |
Rated Power | +70°C 0.5W； +125°C 0W |
Temperature Range | -55°C- + 125°C |
Tcr | ±250、±100ppm/°C |
5 Cycle | △ R≤±2%R, △(Uab/Uac)≤±5% |
Collision | 390m/s2. 4000times AR≤±3%R |
Vibration 10~500HZ,0.75mm Or 98m/S2, 6h | △R≤±1%R ，△（Uab/Uac) ≤±2% |
Climatic Order | △R≤±3%R, R1≥100MΩ |
7ctceiectrical Endurance | 0.5W、1000h、△R≤±3%R |
Mechanical Endurance | 200cycles、△R≤±3%R |
Steady Damp Heat | △R≤±3%R、R1≥100MΩ |
| |
Total Mechanical Travel | 280° |
Staring Torque | <20mN.m |
Stopping Torque | >50mN.m |
Standard Package | 50pcs/tube |
