Best Price for B10k 9mm Rotary Potentiometers with Plastic Shaft
Terminal Resitance: ≤3%Or 3Ω
Contact Resistance Vartion: ≤3%Or 3Ω
Insulation Resistance: R1≥1GΩ
We hope that in the future market, more and more quality 3329 Trimming Potentiometer, Single-stage EMI Filters, 3386 Trimming Potentiometer will be named as our brand so that we will become one of the leaders in the world market. Based on the industry's strategy of specialization, scale and total cost leadership, we always adhere to the service principle of 'quality as life and innovation as vitality'. We are able to customize the solutions according to your needs and we can easily pack it for you when you purchase. We recognize that, while opening up a wider market, we will also be faced with tougher competition. Because of our company has been persisting in the management idea of 'Survival by Quality, Development by Service, Benefit by Reputation'.
Product Description

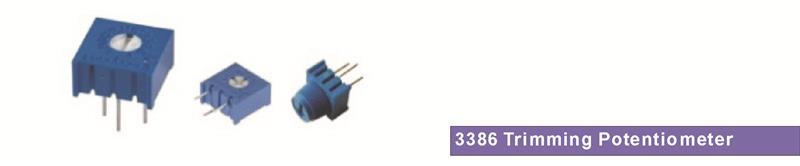

This kind of 3386 Trimming Potentiometer has three terminals, and the resistance can be adjusted according to a certain change rule. It usually consists of a resistor and a movable brush. When the brush moves along the resistor body, a resistance value or voltage which is in a certain relationship with the displacement amount is obtained at the output end. When a voltage is applied between the two fixed contacts of the resistor body, the position of the contact on the resistor body is changed by a rotating or sliding system, and a voltage with certain relationship with the position of the movable contact is obtained between the movable contact and the fixed contact. Thus the 3386 Trimming Potentiometer is usually used as a voltage divider. It also has the advantages of high quality, sophisticated design, compact structure, high quality, durability as well as high cost effective. The 3386 Trimming Potentiometer wins a good reputation among clients due to excellent performance.
Specification
| Range Of Nominal Resistance | 10Ω-2MΩ |
Resistance Tolerance | ±10% |
Terminal Resitance | ≤3%Or 3Ω |
Contact Resistance Vartion | ≤3%Or 3Ω |
Insulation Resistance | R1≥1GΩ |
Withstand Voltage | 101.2kpa 500v 8 5kpa 350v |
Effective Electrical Travel | ≥Total mechanical travel70% |
Rated Power | +70°C 0.5W； +125°C 0W |
Temperature Range | -55°C- + 125°C |
Tcr | ±250、±100ppm/°C |
5 Cycle | △ R≤±2%R, △(Uab/Uac)≤±5% |
Collision | 390m/s2. 4000times AR≤±3%R |
Vibration 10~500HZ,0.75mm Or 98m/S2, 6h | △R≤±1%R ，△（Uab/Uac) ≤±2% |
Climatic Order | △R≤±3%R, R1≥100MΩ |
7ctceiectrical Endurance | 0.5W、1000h、△R≤±3%R |
Mechanical Endurance | 200cycles、△R≤±3%R |
Steady Damp Heat | △R≤±3%R、R1≥100MΩ |
Total Mechanical Travel | 280° |
Staring Torque | <20mN.m |
Stopping Torque | >50mN.m |
Standard Package | 50pcs/tube |
We have always been customer-centric and continuous improvement as the basic point, hoping to make our Best Price for B10k 9mm Rotary Potentiometers with Plastic Shaft has a larger market share. We uphold the enterprise spirit of integrity, team, professional, innovative, and insist on independent research and development of technology for a long time. We adhere to the business philosophy that technology is productivity.
