3 Phase 3 Wire Universal EMI Filter

Product Description



This kind of 3 Phase 3 Wire Universal EMI Filter is made of high quality materials with advanced technology. It is designed to solve the problem of electromagnetic disturbance of power port. It is generally a frequency-selective two-port network composed of inductor, capacitor, resistor or ferrite device. In addition, it has the properties of high performance, small size, compact structure, easy installation, delicate design, long service life as well as high cost effective. We can also design and manufacture a variety of filters to meet your requirements, to help your equipment, subsystems and the entire system effectively suppress electromagnetic interference along the power line, meeting the requirements of electromagnetic compatibility (EMC) related regulations, significant reduce power system interference and improve power efficiency. The 3 Phase 3 Wire Universal EMI Filter is widely used in industrial equipment, machinery, tools such as packaging machines, presses, drilling rigs, laser cutting machines, welding machines, elevators, escalators, etc. It is suitable for most motor drive applications.



Applications

Available for three phases, three lines series power supply equipments.

Rated Voltage	250/440VAC
Line Frequency	50/60HZ
Test Voltage	1500VDC(line/line) 2250VDC (line/ground)
Insulation Resistance	>200MΩ@500VDC
Temperature Rise	< 30℃
Climatic Category	25/085/21



List Of General Products

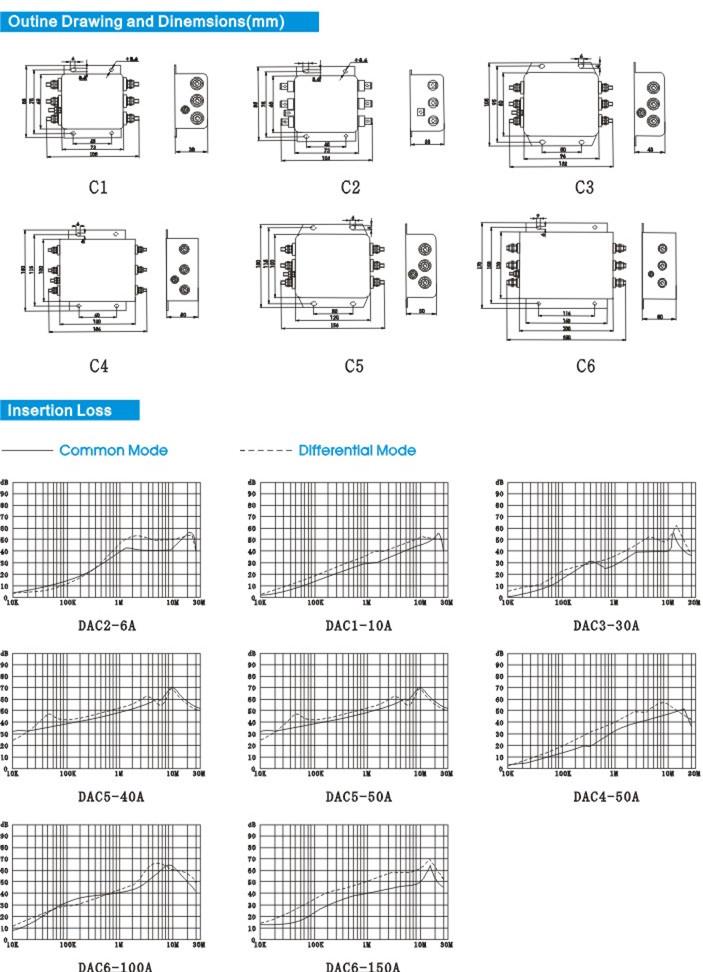

Part No.	Rated Current	Leakage Current	Dimension	Terminal		Electrical Schematics
				Input	Output
DAC1-6A	6A	<1.5mA	C1
DAC1-10A	10A	<1.5mA	C1
DAC1-20A	20A	<1.5mA	C1
DAC1-30A	30A	<1.5mA	C3
DAC4-50A	50A	<2.0mA	C4
DAC5-40A	40A	<2.0mA	C5
DAC5-50A	50A	<2.0mA	C5
DAC6-100A	100A	<2.0mA	C6
DAC6-150A	150A	<2.0mA	C6
